New Eachine E013 RC Drone Micro FPV Quadcopter 5.8G 1000TVL 40CH HD Professional Camera VR009 VR-009 3 Inch Goggles Dron Toys

User Manual,Please Click: 1.Eachine E013 2. Eachine VR009

Note: The remote control and FPV goggles of the new version are slightly different from the old version

Description:

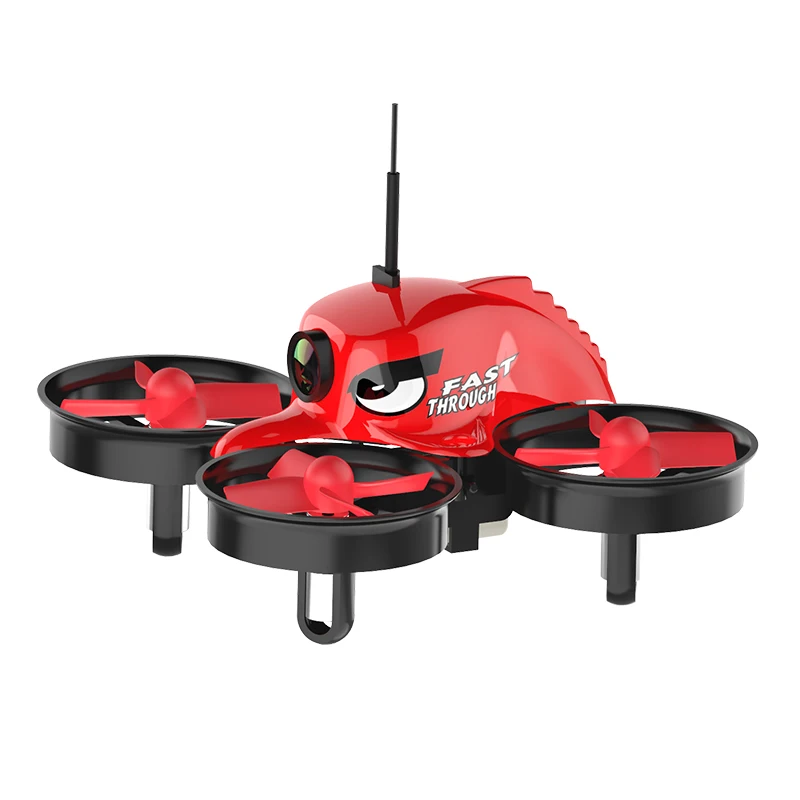

Item name: Eachine E013 Mini Quadcopter
Quadcopter Size: 8.3*8.3*4.35cm
Box Size: 30*19.5*9.5cm(with Goggles)
24.3*12.8*8.2cm(without Goggles)
Gyro: 6-axis
Frequency: 2.4G
Channel: 4CH
Battery: 1s 220mAh (included) (Upgrade)
Motor: 615-17000KV 63000rpm (Upgrade)
Flying distance: 70m

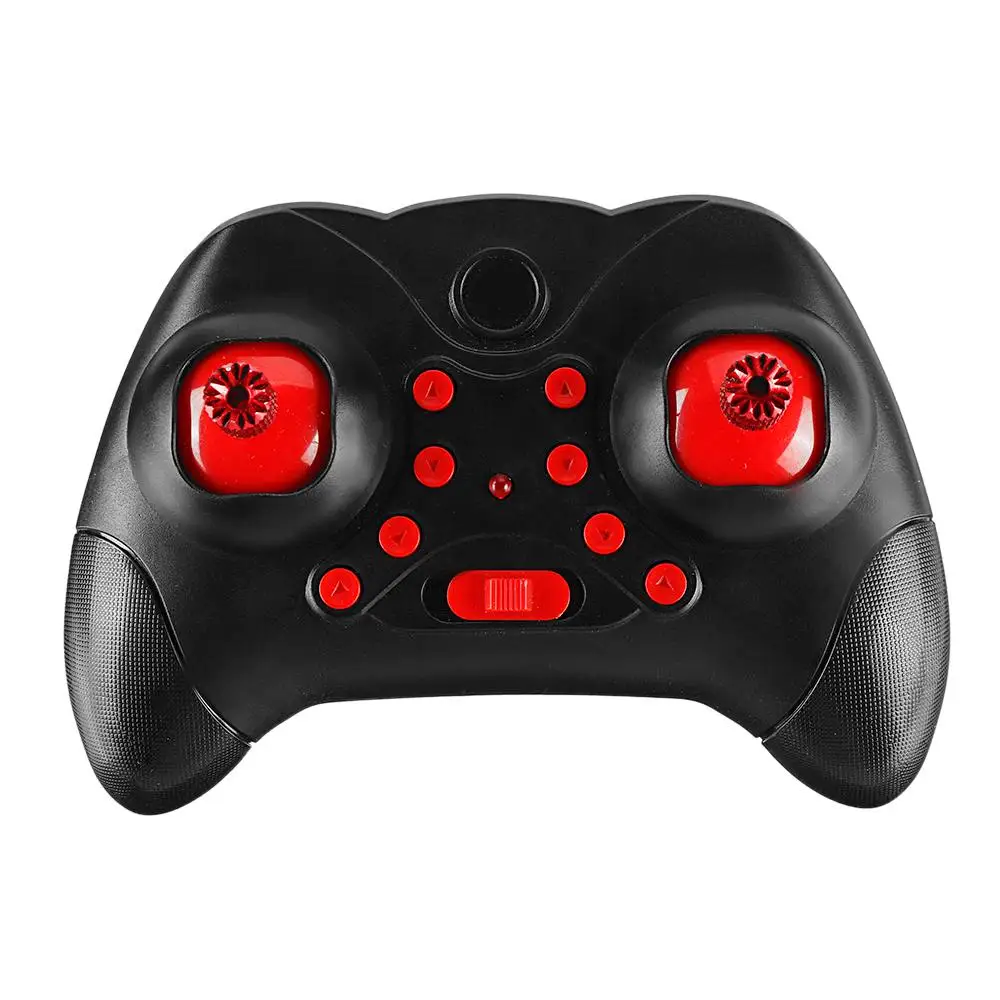

Transmitter Power: 3 * AAA battery(not included)
Flight time: about 5-6minutes
Take-off Weight: 165g
1000TVL 1/3 CMOS FPV Camera:
Frequency: 5.8G
Wireless channel: 40CH
Output power: 25mW
Operatin voltage: 3V-5.5V
Current: 200-340mA
Camera: Sensor: 1/3 “CMOS
Clarity: M7 1000TVL camera
View Angle: 120°FOV H170°
Signal system: NTSC/PAL
Support set power off memory function

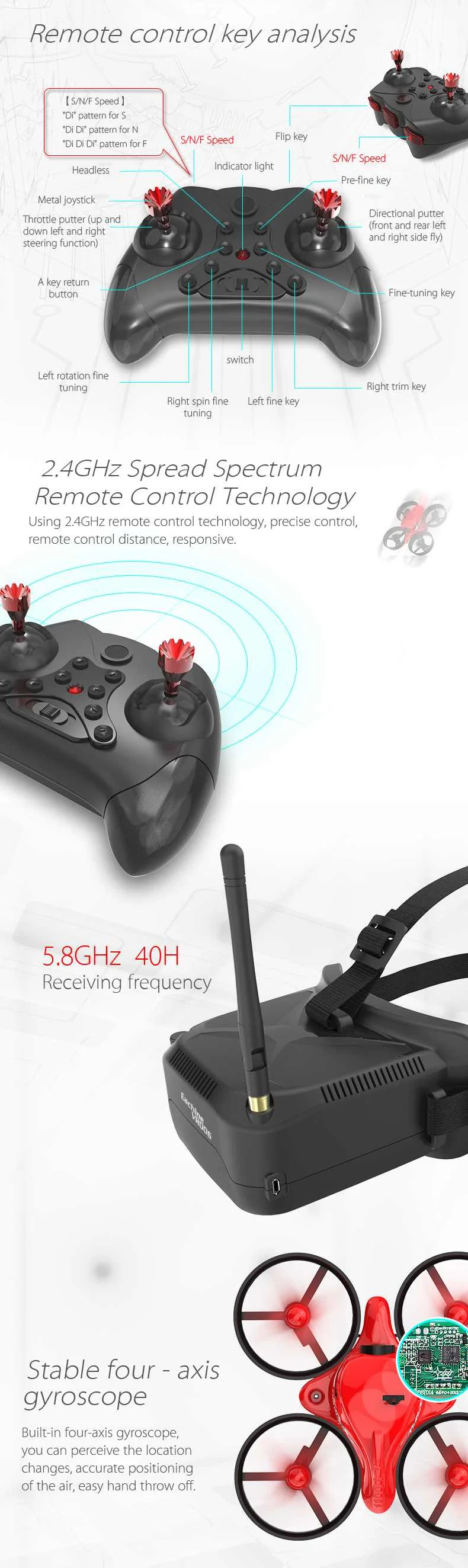

Frequency control: 1.Short press the button,switch frequency
2.Long press the button 2S, switch frequency group(When LD1 flashes, release the button)
3.Long press the button 5s, switch N / P(LD1 from flashing to off and release the button)
(When the NTSC system, LD2 long bright,When the PAL system, LD2 blinks)
Frequency Table: CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8
Band 1 5865 5845 5825 5805 5785 5765 5745 5725
Band 2 5733 5752 5771 5790 5809 5828 5847 5866
Band 3 5705 5685 5665 5645 5885 5905 5925 5945
Band 4 5740 5760 5780 5800 5820 5840 5860 5880
Band 5 5658 5695 5732 5769 5806 5843 5880 5917
VR009 Goggles (two-antenna version):
Model Eachine VR009
Name Mini FPV Goggles
LCD Screen Screen size: 3.0 Inch
Resolution: 480*320
Display Ratio: 16:9
View Angle: 6 o’clock
Brightness: 350cd/m? with high brightness backlight LED
Video delay Video time-delay less than 20ms
Lens 4X Fresnel Lens, 92% transparent rate no distort of light
Interface Antenna 2 X RP-SMA male
USB To charge the battery
AV Jack External video signals input or internals AV signal output
Languages English and Chinese
Power Supply Power adapter: DC5V/1A (USB interface)
Battery: 3.7V/1200mAh,Each full charge revive around 2.5hr working time
Power Consumption:
*The device operating current of 360~400mA at 3.7~4.2V;
*Built-in battery maximum charge current of 500mA;
Body Dimension: 13.5cm * 13.2cm * 6.5cm
Weight: 180g(with headband, not included antennas)

Features:

– Built in propeller, more safe flight

– Built in gyroscope to make aircraft stable

– 1000TVL camera, real-time transmission of high-definition video

– FPV first-person view(indoor racing drone)

– Up / Down / Forward / Backward / Left Turn / Right Turn / Left Fly / Right Fly

– Rudder speed( high and slow speed)

– 360° turning, Pattern tumbling

– One key return, easily recalled

– Headless mode ,compass headless ,flight with remote control

– Lithium battery and USB cable with protection

– Breakthrough conventional wind blades, the flight stability is more powerful

Package Included(New Version):

With Goggles version:

1 x Quadcopter

1 x Transmitter

1 x 1S-220mAh Battery (Upgrade)

1 x AV Port Cable

1 x Goggles

2 x Straight pole antenna

1 x USB charging cable

4 x Blades

1 x User Manual

Without Goggles version:

1 x Quadcopter

1 x Transmitter

1 x 1S-220mAh Battery (Upgrade)

4 x Blades

1 x USB charging cable

1 x User Manual
